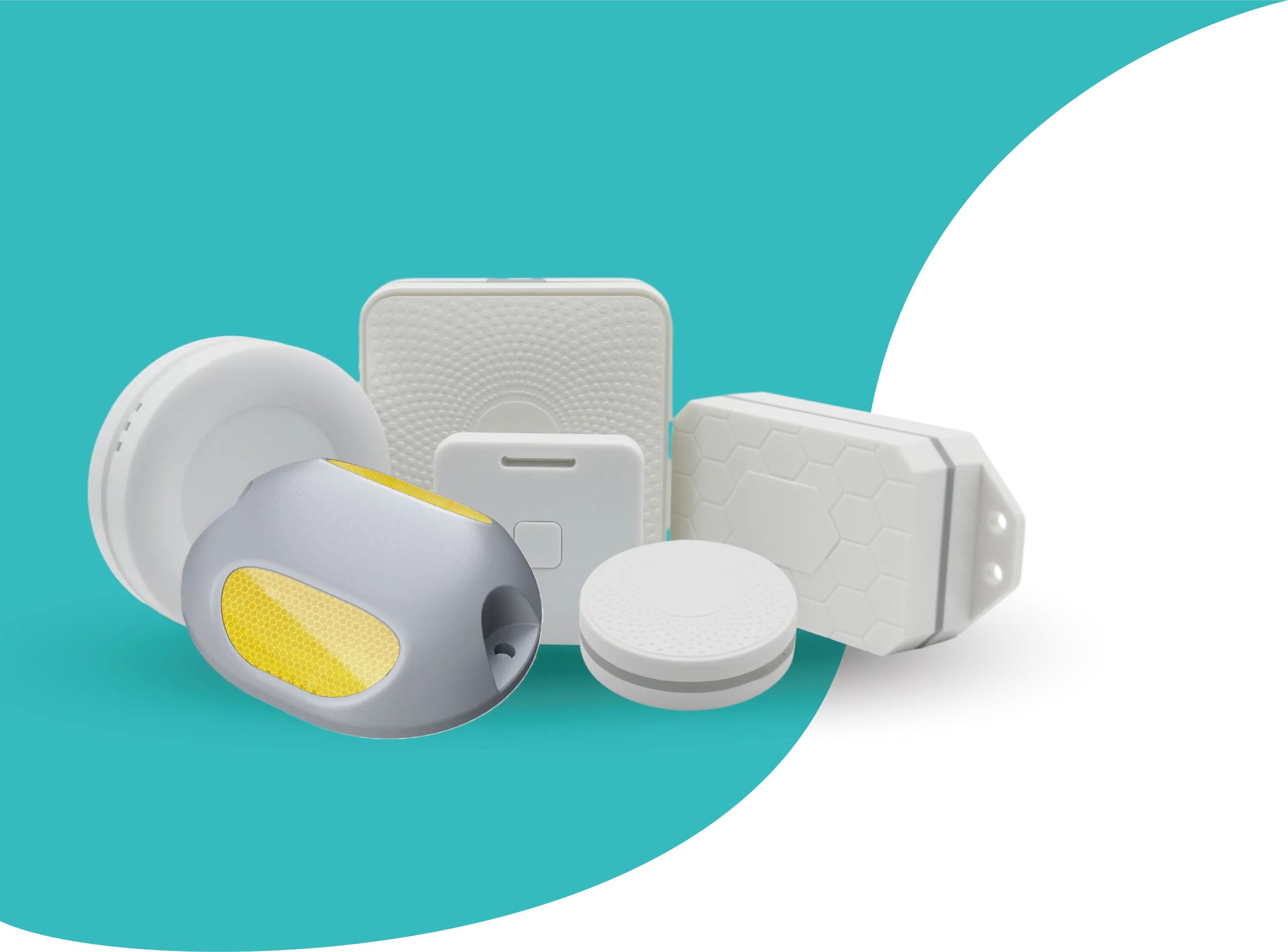

IoT BLE Beacons

BLE-Beacons

As per different demands of real use cases, we have developed some types of iBeacon & Eddystone beacons, which are all based on nRF52 BLE5.0 chip solutions and support iBeacon (UUID, Major, Minor), Eddystone (UID, Instance iD, NameSpace iD, URL, TLM, Info) and SOS multi-packet data broadcast.

Which type is right to your project?

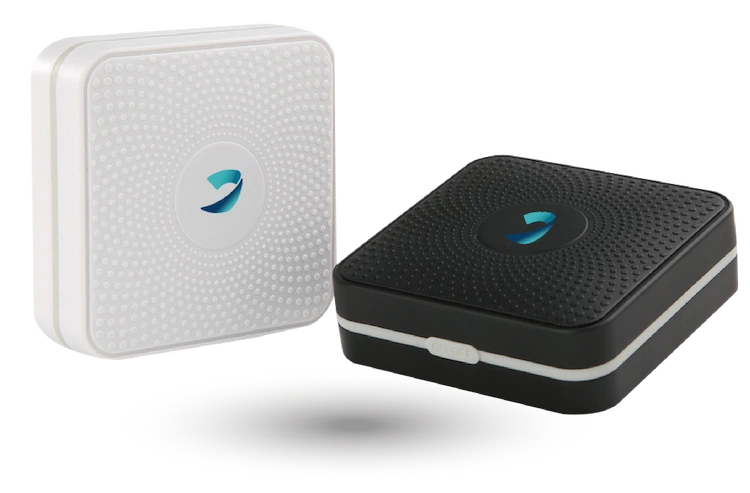

STiE2 portable beacon

STiE2/SCiE2

  STiE2 STiE3 STiE5 STiE6
Size 72*72*23mm 91*47*25mm 63*20mm 48*15mm
Battery Type 4*LRO6 AA
battery(4*2300mAh)
2*Acid-base AA battery(2*2300mAh)
**Attention: 2*Li-Fe AA battery
(2*2900mAh) optional
2*LRO3 AAA battery
(2*1100mAh)
1*CR2477(1*1050mAh)
Battery Life
(Tx=0dBm, Intvl:1s)
3~5 years 4~6 years 3 years Max 2.5 years Max
Transmission Range 300m Max 150m Max 150m Max 100m Max
IP Rate IP67
Sensors Supported 3-axis acceleration sensor
Certificates CE, FCC, ROHS, ISED, TELEC

Our sale engineers will help you choose the most suitable beacon types for your project

choose the most suitable beacon

What is a Bluetooth beacon and how does a Bluetooth beacon work?

Beacon originally means a lighthouse or a direction indicator, working as a positioner/navigator for the boats in sea or the aerocrafts in air, so it is easily understood that a Bluetooth beacon is a small Bluetooth signal/data transmitter that is attached to an object and transmits a signal to the receivers, so that it plays the important role on wireless tracking, positioning, navigating, usw. The beacon broadcasts a simple unique ID, that is then identified by a receiver. The receiver, which can be a smartphone or a gateway, pulls the related data from the cloud. The signal broadcast by the beacon includes its ID, firmware, battery level, and potentially other data such as the data of sensors. It does not include location data like a GPS tracker, which is determined by the signal strength at the receiver.

Item tracking

Item tracking

IRoute guidance

IRoute guidance

Info push

Info push

This allows, for example, a museum’s app to provide a visitor with information about an exhibit sent directly to their phone without them needing to stop and scan a QR code. Beacons can also be used for indoor navigation, tracking (for another example, when you walk into a trade show booth, it might start playing the promotional videos), and triggering automated events for security.

Bluetooth beacons are usually used to work as a part of system, which may have to include an App. Users consent to receive notifications when they download the App, besides, they also have to turn Bluetooth on when using BLE (Bluetooth Low Energy) beacons. By the way, beacons are stationary, while tags move, which is also the most obvious difference between BLE beacons and BLE tags (More on the tech differences in other pages).
