BLE Push Buttons
and good tactile to help you integrated into your IoT solution.
Which push button to choose?
A push button is mostly used by people, either it is portable so that you can put it on a desk, or it is wearable for the users.
SCiE5
Portable (not wearable)
Dia. 40*14mm
With a buzzer
STiE7
Wearable card type
85.5*54*4mm
4-yr battery life

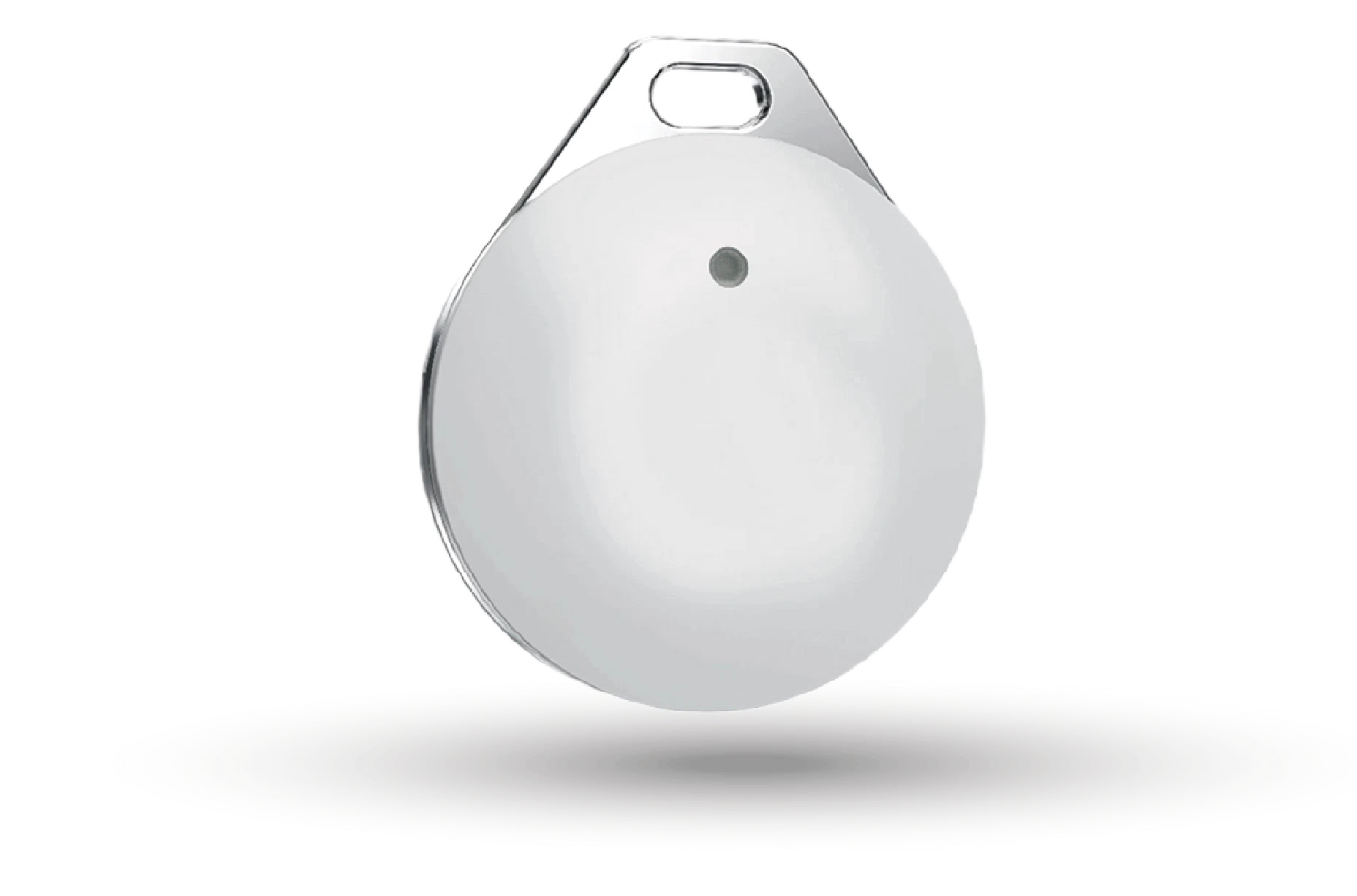

SCiE8
Wearable pendant type
Dia. 36.5*6mm
Nice push button
All of them can be added with 3-axis acceleration sensor if necessary
Our sale engineers will help you choose the most suitable beacon types for your project
- Key chip: nRF52832 (nRF52810 optional);
- Casing material: ABS + PC, Silicon;
- iBeacon and Eddystone dual protocol;
- RGB indicators and beeps for power-on, connection and power-off;
- Power supply: 1 x CR2450 button cell;
- Exquisite battery cabinet for easier battery replacement;
- Battery duration: 1.5 years Max. when the buzzer function is activated;
- BLE5.0 SDK for development support.
| Package Details | Inner Box | Carton |
|---|---|---|
| Quantity Packed | 20 pcs | 300 pcs |
| Net Weight | 0.4 Kg | 6 Kg |
| Gross Weight | 0.5 Kg | 9 Kg |
| Dimension | 31.5*13*7 cm | 35*32*40 cm |
It is a professional version for professional applications, using in a car or small office or home, etc.
With a magnet base, so it is portable and moveable, namely the magnet base can be fixed and the device body is moveable and able to return. With a buzzer, the beacon can be used for SOS and reminding the power-on, connection and power-off. Based on the magnet base and the buzzer, the professional version has shorter transmiting range and battery life than SCiE5.
- Loaded with iBeacon & Eddystone dual-protocol firmware;
- Max 4-year battery life span with 10s broadcast interval @ 0dBM;
- Affordable extreme working temperature range-40~85 Celsius degree;
- OTA: DFU (Device Firmware Upgrading) and guide file
Notes:
STiE7A: STiE7 with accelerometer
STiE7T: STiE7 with RFID 125KHz TK4100 chip
STiE7S: STiE7 with RFID 13.56MHz NXP S50 chip
STiE7N: STiE7 with NFC 13.56MHz NTag215 chip
| Package Details | Inner Box | Carton |
|---|---|---|
| Quantity Packed | 40 pcs | 600 pcs |
| Net Weight | 0.85 Kg | 13 Kg |
| Gross Weight | 0.9 Kg | 14 Kg |
| Dimension | 31.5*13*7 cm | 35*32*40 cm |
STiE7 is a BLE4.0/5.0 people tracking beacon card. It is the best indoor people tracking solution in the BLE beacon field. Combining with RFID/NFC chip, it is also used for access control or time attendance system. Long battery life and high waterproof level.
- Loaded with iBeacon & Eddystone dual-protocol firmware;
- 0.5-1.5 years battery life span with 10s broadcast interval @ 0dBM;
- Affordable extreme working temperature range-40~85 Celsius degree;
- OTA: DFU (Device Firmware Upgrading) and guide file
Notes:
SCiE8: no 3-axis accelerometer
SCiE8-A: with 3-axis accelerometer
| Package Details | Inner Box | Carton |
|---|---|---|
| Quantity Packed | 40 pcs | 600 pcs |
| Net Weight | 0.508 Kg | 7.65 Kg |
| Gross Weight | 0.65 Kg | 9 Kg |
| Dimension | 31.5*13*7 cm | 35*32*40 cm |
A portable BLE tag beacon, the most economical sensor beacon in SATECH Beacon tag family. Because of exquisite design, It is a very popular solution in indoor tracking/navigating/info push applications.
