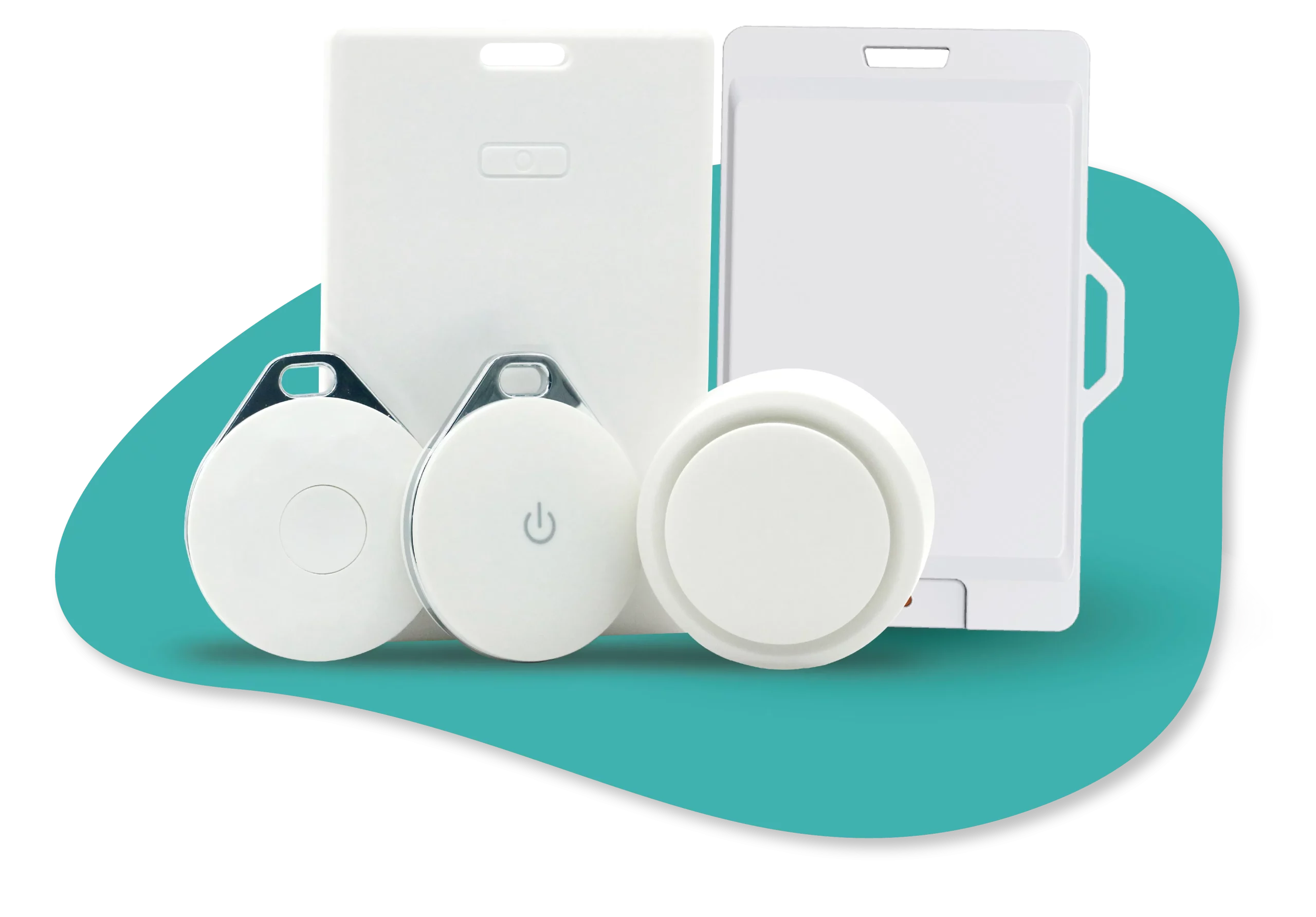

BLE プッシュボタン
IoT ソリューションへの統合に役立つ優れた触感.
どの押しボタンを選択するか?
押しボタンは主に人が使用します, 持ち運び可能なので机の上に置くこともできます, またはユーザーがウェアラブルである.
SCiE5
ポータブル (着用不可)
はい. 40*14んん
ブザー付き
STiE7
ウェアラブルカードタイプ
85.5*54*4んん
4-年間のバッテリー寿命
SCiE8
身に着けられるペンダントタイプ
はい. 36.5*6んん
素敵な押しボタン
必要に応じていずれも3軸加速度センサーを追加可能
当社のセールス エンジニアが、プロジェクトに最適なビーコン タイプの選択をお手伝いします。
- キーチップ: nRF52832 (nRF52810オプション);
- 筐体材質: ABS + パソコン, ケイ素;
- iBeacon と Eddystone のデュアル プロトコル;
- 電源オン時の RGB インジケーターとビープ音, 接続と電源オフ;
- 電源: 1 ×CR2450ボタン電池;
- 電池交換を容易にする絶妙な電池キャビネット;
- バッテリー持続時間: 1.5 最大年数. ブザー機能が作動したとき;
- 開発サポート用のBLE5.0 SDK.
| パッケージの詳細 | Inner Box | Carton |
|---|---|---|
| Quantity Packed | 20 pcs | 300 pcs |
| Net Weight | 0.4 Kg | 6 Kg |
| Gross Weight | 0.5 Kg | 9 Kg |
| Dimension | 31.5*13*7 cm | 35*32*40 cm |
It is a professional version for professional applications, using in a car or small office or home, 等.
With a magnet base, so it is portable and moveable, namely the magnet base can be fixed and the device body is moveable and able to return. ブザー付き, the beacon can be used for SOS and reminding the power-on, 接続と電源オフ. Based on the magnet base and the buzzer, the professional version has shorter transmiting range and battery life than SCiE5.
- Loaded with iBeacon & Eddystone dual-protocol firmware;
- Max 4-year battery life span with 10s broadcast interval @ 0dBM;
- Affordable extreme working temperature range-40~85 Celsius degree;
- OTA: DFU (Device Firmware Upgrading) and guide file
Notes:
STiE7A: STiE7 with accelerometer
STiE7T: STiE7 with RFID 125KHz TK4100 chip
STiE7S: STiE7 with RFID 13.56MHz NXP S50 chip
STiE7N: STiE7 with NFC 13.56MHz NTag215 chip
| パッケージの詳細 | Inner Box | Carton |
|---|---|---|
| Quantity Packed | 40 pcs | 600 pcs |
| Net Weight | 0.85 Kg | 13 Kg |
| Gross Weight | 0.9 Kg | 14 Kg |
| Dimension | 31.5*13*7 cm | 35*32*40 cm |
STiE7 is a BLE4.0/5.0 people tracking beacon card. It is the best indoor people tracking solution in the BLE beacon field. Combining with RFID/NFC chip, it is also used for access control or time attendance system. Long battery life and high waterproof level.
- Loaded with iBeacon & Eddystone dual-protocol firmware;
- 0.5-1.5 years battery life span with 10s broadcast interval @ 0dBM;
- Affordable extreme working temperature range-40~85 Celsius degree;
- OTA: DFU (Device Firmware Upgrading) and guide file
Notes:
SCiE8: no 3-axis accelerometer
SCiE8-A: with 3-axis accelerometer
| パッケージの詳細 | Inner Box | Carton |
|---|---|---|
| Quantity Packed | 40 pcs | 600 pcs |
| Net Weight | 0.508 Kg | 7.65 Kg |
| Gross Weight | 0.65 Kg | 9 Kg |
| Dimension | 31.5*13*7 cm | 35*32*40 cm |
A portable BLE tag beacon, the most economical sensor beacon in SATECH Beacon tag family. Because of exquisite design, It is a very popular solution in indoor tracking/navigating/info push applications.
